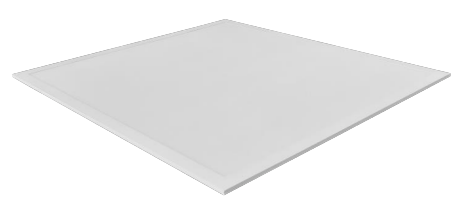

2×2 3CCT 14W/22W/30W IP65 Panel Light

ETLPZG3-IP-22
  • 3 Power & 3 CCT field-adjustable — 30W/22W/14W
  • 3CCT selectable: 3500K | 4000K | 5000K
  • Full-Body IP65 Certified — suitable for wet locations
  • DLC 6.0S listed, 135LPW high efficiency
  • Flicker free (≤10%)
  • 0-10V dimming support
  • Recessed ceiling mount ready (default)
2x2-LED-3CCT-30W22W14W-IP65-Panel-Light

Description

Premium IP65 LED Panel Light designed for commercial and industrial applications. Features 3 power levels (30W/22W/14W) and 3 CCT selectable (3500K/4000K/5000K) for versatile lighting solutions. Full-body IP65 rating ensures suitability for wet locations including food processing plants, pharmaceutical cleanrooms, commercial kitchens, and indoor parking garages. High efficacy at 135LPW with flicker-free operation (≤10%). Compatible with 0-10V dimming systems. Long lifespan with L70 > 100,000 hours based on IES LM-80 results. Recessed ceiling mount ready; optional suspension or drywall mount kits available. Operating temperature: -20°C to 40°C. All mounting hardware included.

Specification

SIZE:
WATTAGE:
VOLTAGE:
CRI:
CCT:
LUMEN:
LPW:
MATERIAL:
LENS:
FINISH:
BEAM ANGLE:
LIFESPAN:
DIMMABLE:
RATING:
MOUNTING:
WARRANTY:

2×2 (22)

30W/22W/14W

120-277V

80

3500K | 4000K | 5000K

4,000/3,000/2,000 lm

135 lm/W

AL+PC

Frosted Polystyrene

Long lasting white

120°

≥100,000 HOURS

0-10V Dimming

IP65, Wet Location

Recessed (Suspension/Drywall Optional)

5 Year Limited
