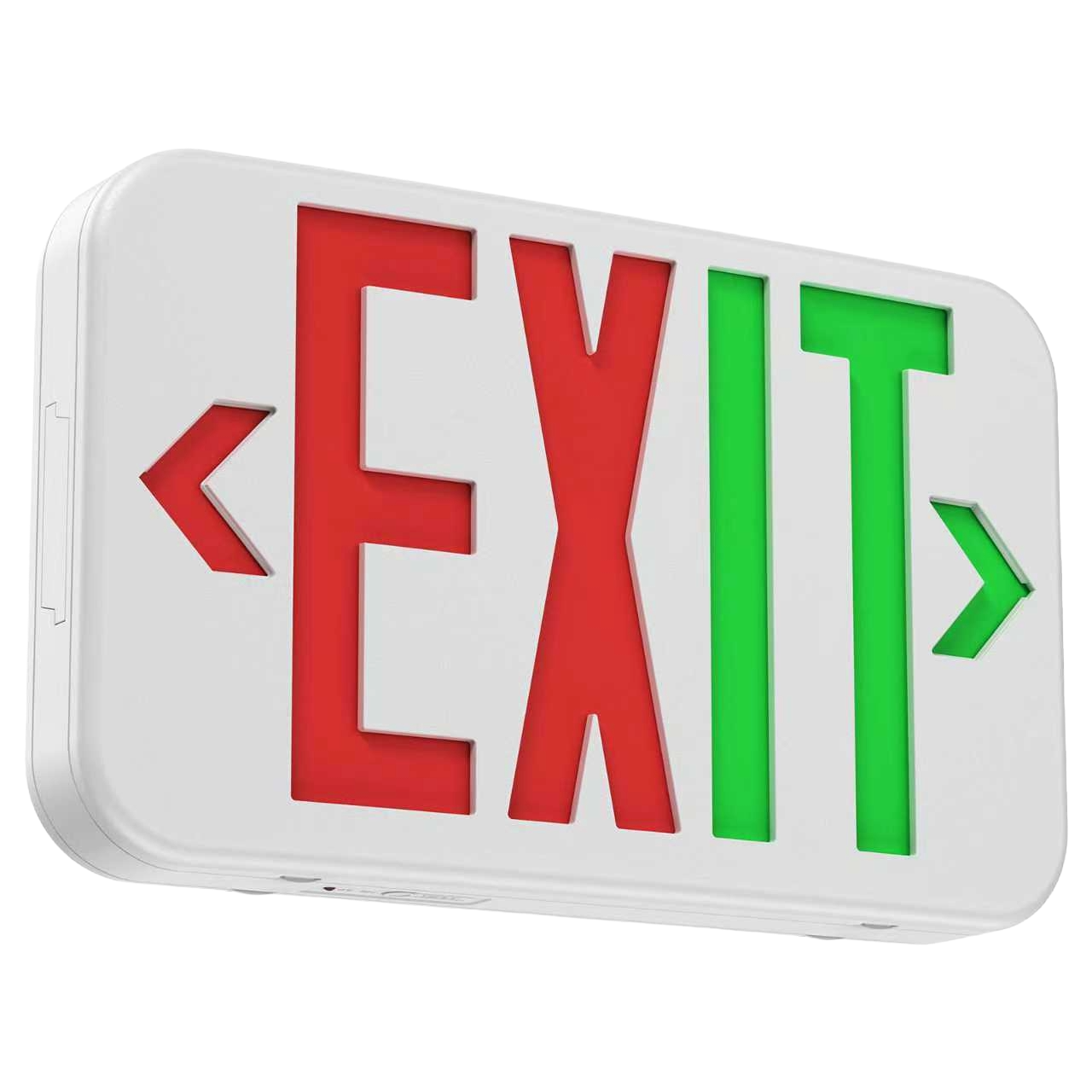

Dual Color LED Exit Light

CR-7037RG
  • Universal field-selectable single-/double-face
  • Universal red/green letter
  • Wall, end and ceiling mounting
  • Suitable for Damp Locations
  • UL 924 and CEC Title 20 Compliant

Description

The CR-7037RG is a dual color LED exit light featuring fully illuminated 6″ characters with long-life, high-intensity LEDs. Built with injection-molded thermoplastic ABS housing that is UL-94-V0 flame-retardant and fire-resistant. Letter color can be switched between red and green via a convenient DIP switch, and the face configuration is field-selectable between single- and double-face. Mounts to wall, end, and ceiling surfaces and is rated for damp locations. Powered by a maintenance-free 1.2V NiCad battery with 90 minutes of emergency backup. UL 924 Listed and CEC Title 20 Compliant.

Specification

ILLUMINATION:

INPUT VOLTAGE:

INPUT RATING:

BATTERY:

CHARGING TIME:

DISCHARGE TIME:

OPERATING TEMP:

HOUSING:

LEGEND:

MOUNTING:

FINISH:

DIMENSION:

CERTIFICATIONS:

Long-life, High-intensity LEDs

120/277VAC 60Hz

1.2W, 100mA

Maintenance-free 1.2V NiCad

24 Hours

90 Minutes

0°C to 40°C (32°F to 104°F)

Injection-molded Thermoplastic ABS, UL-94-V0 Flame-retardant

Fully Illuminated 6″ Characters

Wall, End and Ceiling

White

295 × 184.2 × 44.5 mm

UL 924 | NFPA 101 | NEC | OSHA | CEC Title 20
