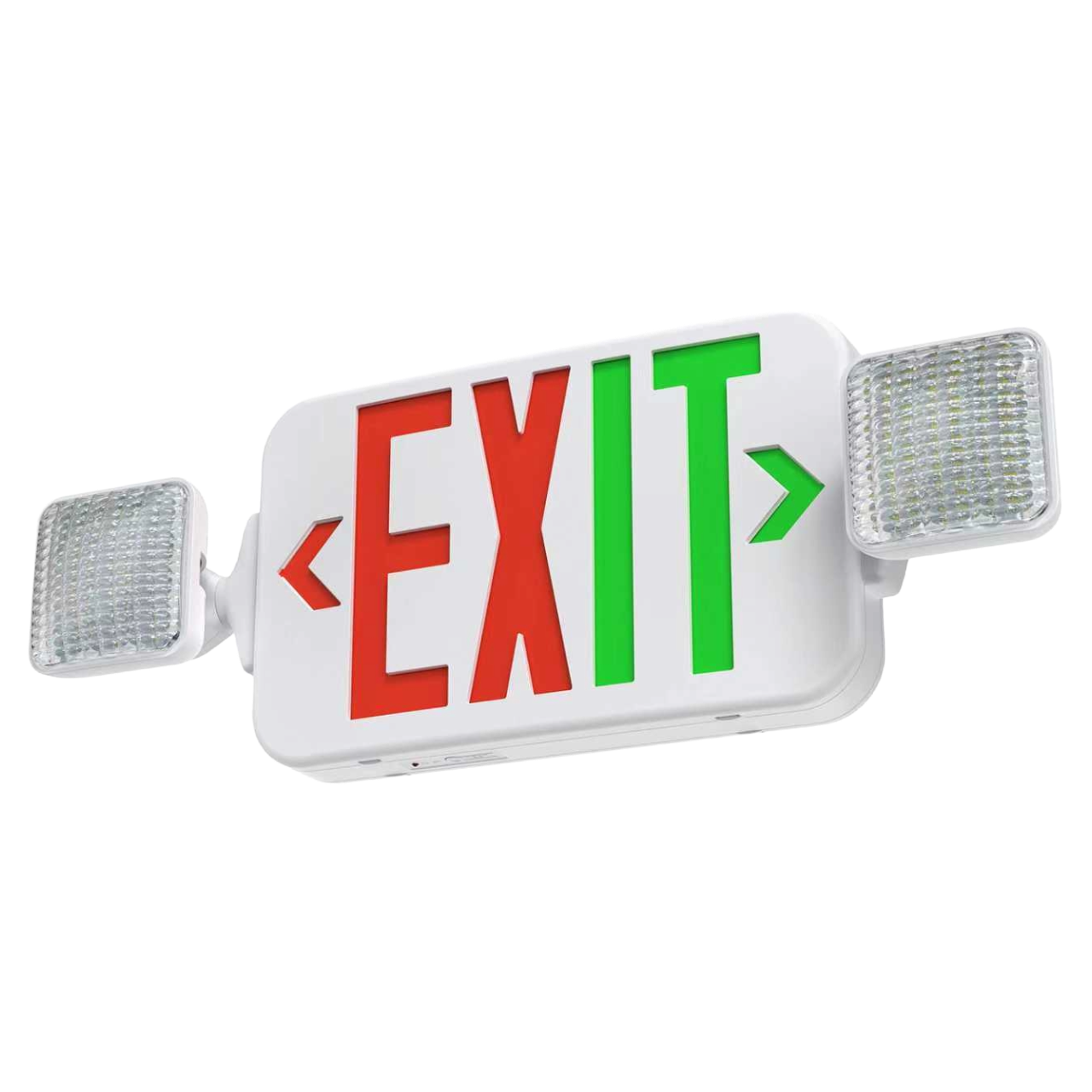

CR-7088R/G
The CR-7088R/G is a combo unit combining a dual color LED exit sign with two fully adjustable 1.2W emergency lamp heads. The exit sign features fully illuminated 6″ characters powered by long-life, high-intensity LEDs, while 24 PCS SMD LEDs provide 2.4W of emergency area lighting. Built with injection-molded thermoplastic ABS housing that is UL-94-V0 flame-retardant and fire-resistant. Face configuration is field-selectable between single- and double-face. Mounts to wall and ceiling, rated for damp locations. Available in red or green letter, with optional remote capability (RC) or auto self-diagnostic (AT) versions. Powered by a maintenance-free 3.6V NiCad battery with 90 minutes of emergency backup.
ILLUMINATION:
LAMPS:
INPUT VOLTAGE:
INPUT RATING:
BATTERY:
CHARGING TIME:
DISCHARGE TIME:
OPERATING TEMP:
HOUSING:
LEGEND:
MOUNTING:
FINISH:
DIMENSION:
CERTIFICATIONS:
Long-life, High-intensity LEDs
24 PCS SMD LED, Total 2.4W
120/277VAC 60Hz
2.0W, 150mA
Maintenance-free 3.6V NiCad
24 Hours
90 Minutes
0°C to 40°C (32°F to 104°F)
Injection-molded Thermoplastic ABS, UL-94-V0 Flame-retardant
Fully Illuminated 6″ Characters
Wall and Ceiling
White
488.37 × 184.2 × 93.16 mm
UL 924 | NFPA 101 | NEC | OSHA | CEC Title 20
